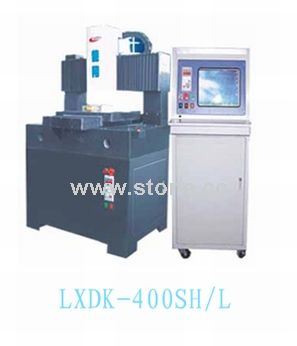

High-precision Engraving Machine (LXDK-400S)

• Place of Origin:

   China

• Type:

  Polishing and Surface Finishing Machinery

• Genre:

  Machinery & Equipment

• sCode:

  STPR1285647

• Place of Origin:

  China
• LXDK-400S: Be applicable to processing aluminous cover of MP3, mobile phones and digital cameras using fine finish technology, and inlaying and milling watches, and engraving high-precision mini-moulds.

  1. Chielf parts of the quipment
  Moving System: Import high-precision ball screw and linear guide
  Driving System: Japan Panasonic AC Servo System
  Frequency converters: Taiwan frequency converters
  Spindles: 400S equip with water-cooled machine, manual tool change, hilt(φ1-φ6mm). 400S chose homemade spindles of 2.4rpm to 4.2 rpm, manual tool change.
  Control System: Here homemade system and export system are able to choose by you. Here it can directly accept code file G that output by international versatile edition software such as Mastercam, Pro/E and so on.

  2. Technical parameters:
  Travels (x×y× z) 400×320×80mm
  Positioning accuracy ±0.01mm
  Repeatability accuracy ±0.005mm
  Light load speed 12m/min
  Engraving speed 0-7m/min
  Fixing Cutter Φ1-Φ6mm/Φ10
  Total power 2KM
  Power Voltage 220V
  Weight 1000KG
  Dimensions 1100×900×1500mm
